Cleaning Systems
HTW Bio

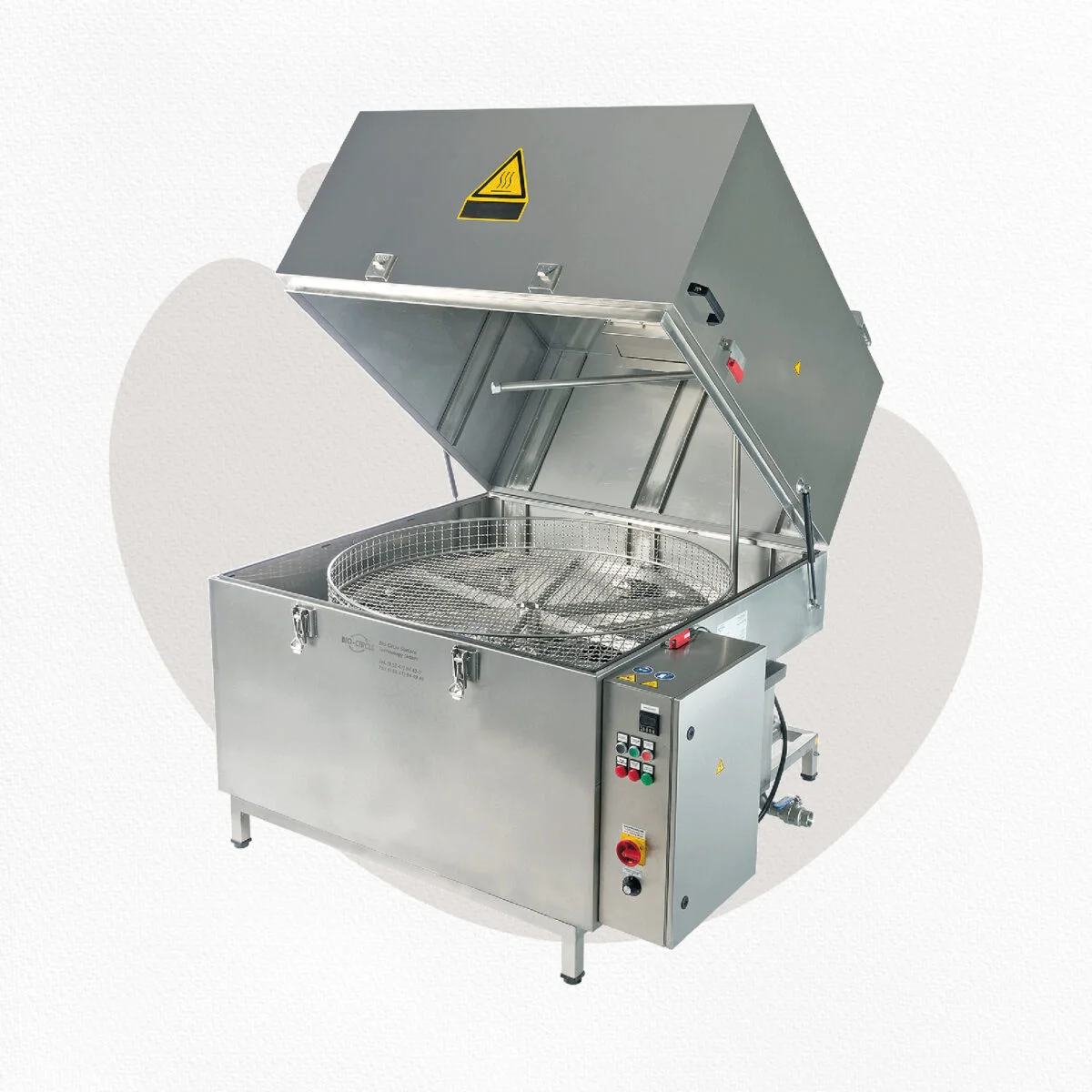

Automatic Hot-Water Industrial Parts Washer
The HTW Bio is the sector's premier automatic hot-water parts washing system. Engineered for high-performance degreasing, it stands alone as the ultimate combination of heavy-duty cleaning power and eco-friendly sustainability.
Available Models
Highlights
Basket Diameter
800 mm - 1500 mm
Load Capacity
Up to 500 kg
Spray Pressure
2.5 - 5 Bar
Cleaning Efficiency
Flat Nozzles for Higest Delivery Efficiency
Build Material
Complete Stainless Steel Construcation
Bio-Circle L Liquid
View ProductIs This Product Right for You?
It is suitable for companies that want to: • Reduce manual cleaning effort • Clean oily and greasy parts consistently • Move away from harsh solvent-based cleaning • Improve workplace safety and cleanliness • Reduce cleaner waste and disposal frequency • Extend the life of the cleaning solution • Handle medium to heavy industrial contamination • Improve cleaning efficiency in workshops and production areas
Application

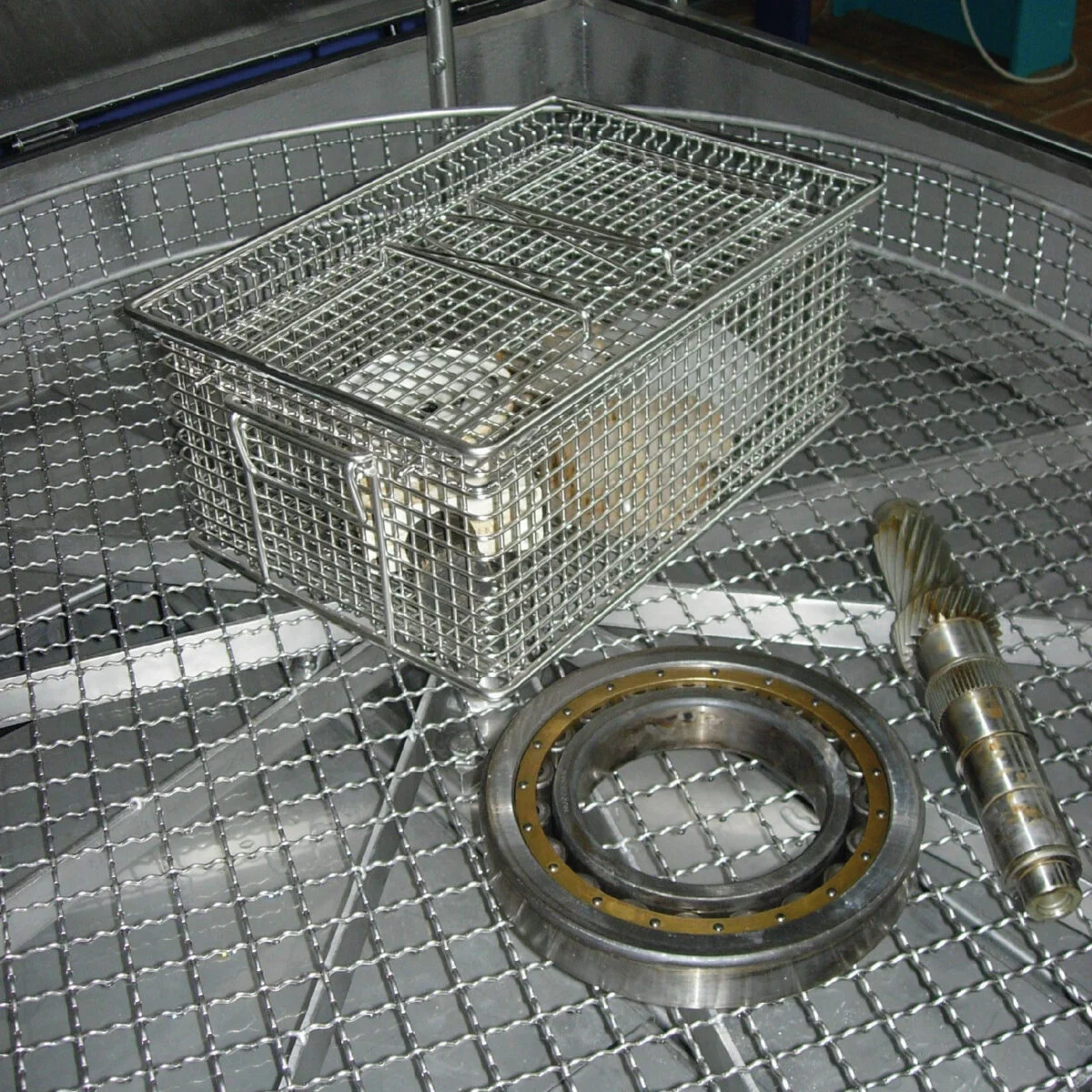

• Cleaning machine parts used in production and maintenance • Degreasing oily and greasy industrial components • Washing tools,fixtures,and workshop parts • Preparing components before repair,inspection,or assembly • Cleaning metal,plastic,aluminium,zinc-coated,and non-ferrous parts • Supporting routine maintenance cleaning in industrial plants,Parts Washing Systems,Degreasing Solutions
Specification
| Parameter | HTW Bio 800 | HTW Bio 1000 | HTW Bio 1200 | HTW Bio 1500 |
|---|---|---|---|---|
| Overall width × overall depth (mm) | 1250 x 1165 | 1405 x 1280 | 1620 x 1505 | 2080 x 1720 |
| Height with lid closed/open with angled exhaust duct (mm) | 1380/1800 | 1540/2040 | 1600/2320 | 1840/2740 |
| Inner diameter of rack approx. (mm) | 775 | 975 | 1175 | 1475 |
| Useful height max. (mm) | 400 | 450 | 650 | 700 |
| Payload max. (kg) | 350 | 350 | 350 | 350 |
| Washing tank capacity (L) | 150 | 300 | 485 | 770 |
| Total weight of the cleaning device (kg) excl. tank filling payload and supplementary equipment | 280 | 370 | 500 | 800 |
| Connected value total (kW) excl. supplementary equipment approx. | 6 | 8.5 | 11.5 | 21.5 |
| Power supply | 230 V, 50 Hz | 230 V, 50 Hz | 230 V, 50 Hz | 230 V, 50 Hz |
| Pump automatic cleaning: flow rate (m³/h/bar) | 4.8/3.8 | 12.0/3.8 | 12.0/3.8 | 14.5/4.5 |
| Electric heating in the washing tank (kW) | 4.5 | 6 | 9 | 2x9 |
| Treatment temperature (guide value) (°C) | 45 | 45 | 45 | 45 |
| Oxygen membrane compressor | Yes | Yes | Yes | Yes |
Why Choose the HTW Bio?
Best-in-Class Degreasing: Effortlessly removes heavy oil, grease, and dirt from steel, aluminum, plastics, and non-ferrous metals.
Smart Bio-Technology: Powered by Bio-Chem's microorganism liquid, it actively digests oil—slashing waste disposal costs and maximizing fluid life.
Premium Efficiency & Safety: Insulated housing cuts energy costs, while the solvent-free formula ensures a 100% safer workplace.
Bio-Circle L Liquid
View ProductSimilar Products
View All Products
Similar Products
View All ProductsReady to Modernize
Your Process?
Consult with our application engineers to find the ideal cleaning or surface protection configuration for your facility.
