Cleaning Systems
MAX ECO

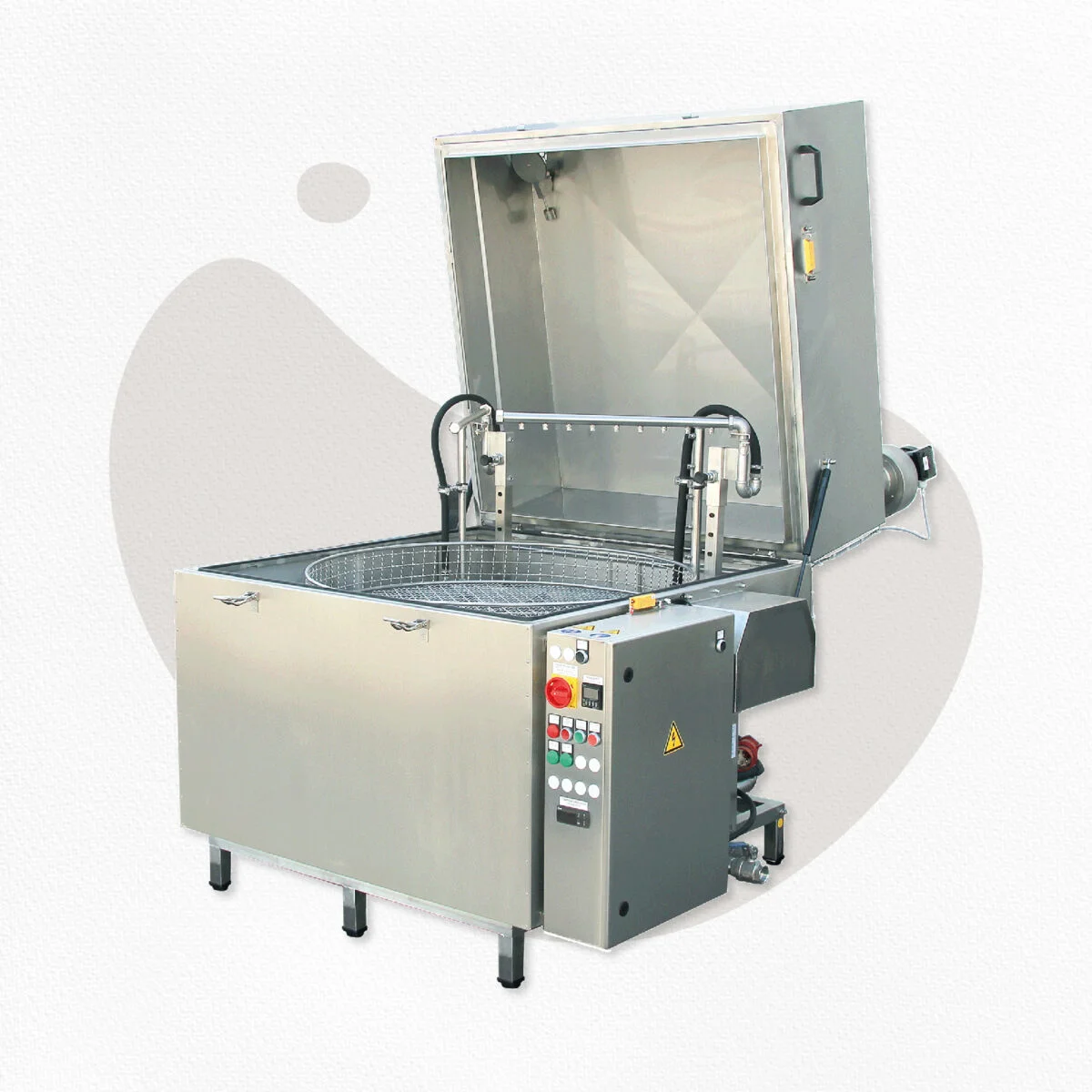

Automatic Hot-Water Parts Washing system
The Max Eco is a powerful and easy-to-operate hot-water parts washing system designed for efficient single-stage cleaning and degreasing of industrial components. If you’re tired of slow turnaround times and inconsistent cleaning, the Max Eco is the upgrade your workshop needs. It is the sector’s easiest, most reliable single-stage system for blasting away heavy grease and industrial grime.
Available Models
Is This Product Right for You?
It is suitable for companies that want to: •Clean and degrease industrial components efficiently •Reduce manual cleaning effort •Improve cleaning consistency across parts •Handle workpieces, motors, and machine components •Support production and maintenance cleaning needs •Improve drying after the washing process •Use a controlled hot-water cleaning system •Maintain cleaner and safer workshop operations
Application
•Cleaning machine components and workpieces •Degreasing oily and greasy metal parts •Washing motors and mechanical assemblies •Cleaning CNC and metalworking components •Preparing parts before inspection,repair,or assembly,Parts Washing Systems,Degreasing Solutions
Specification
| Parameter | HTW II MAX ECO 800 | HTW II MAX ECO 1000 | HTW II MAX ECO 1200 | HTW II MAX ECO 1500 |
|---|---|---|---|---|
| Overall width × overall depth (mm) | 1215 × 1225 | 1405 × 1420 | 1695 × 1495 | 2080 × 1710 |
| Height with lid closed/open with angled exhaust duct (mm) | 1090 / 1840 | 1255 / 2040 | 1460 / 2280 | 1700 / 2740 |
| Inner diameter of rack, approx. (mm) | 800 | 975 | 1175 | 1500 |
| Useful height max. (mm) | 350 | 400 | 600 | 700 |
| Basket diameter (mm) | 800 | 975 | 1175 | 1475 |
| Payload max. (kg) | 350 | 1000 | 1000 | 1000 |
| Washing tank capacity (L) | 150 | 300 | 485 | 770 |
| Total weight of the cleaning device (kg) excl. tank filling, payload and supplementary equipment | 260 | 360 | 500 | 830 |
| Connected value total (kW) excl. supplementary equipment approx. | 7.1 | 8.6 | 11.6 | 21.3 |
| Power supply | 230 V, 50 Hz | 230 V, 50 Hz | 230 V, 50 Hz | 230 V, 50 Hz |
| Pump - automatic cleaning: flow rate (m³/h) | 12 | 12 | 12 | 14.4 |
| Electric heating in the washing tank (kW) | 4.5 | 6 | 9 | 18 |
| Treatment temperature (guide value) (°C) | 85 max | 85 max | 85 max | 85 max |
Why Choose the MAX ECO?
360 High-Pressure Clean: A heavy-duty rotating basket and high-pressure nozzles strip grease from every angle—no missed spots.
Fast Digital Drying: Built-in digital temperature controls and an integrated air shower get your parts dry and back into production instantly.
Operator Approved: The insulated body and vapor extractor keep your workshop safer, quieter, and more comfortable
Highlights
Cleaning Efficiency
Flat Nozzles for Higest Delivery Efficiency
Build Material
Complete Stainless Steel Construction
