Cleaning Systems

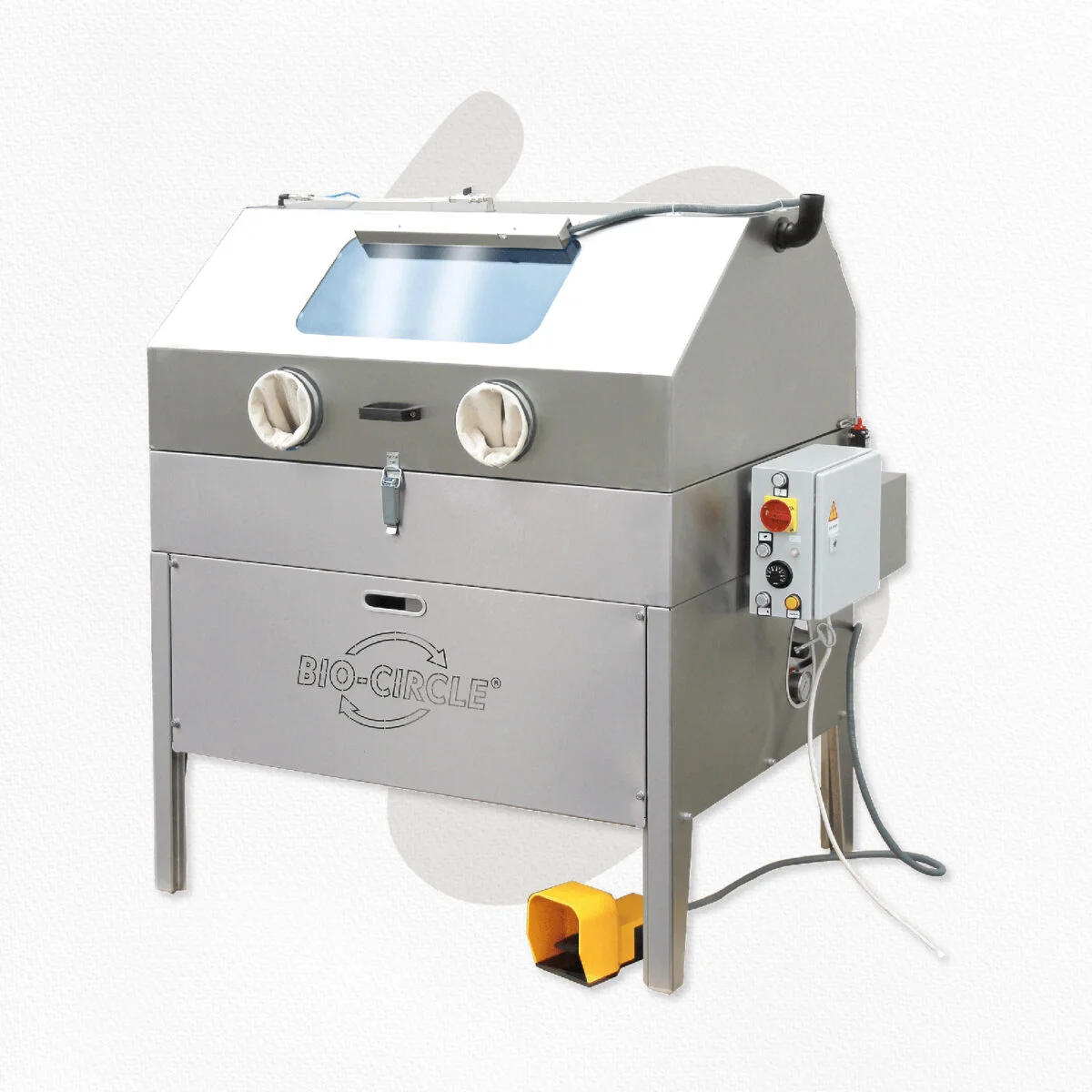

HP VIGO
Automatic Hot-Water Parts Washing system
The HP Vigo is a high-pressure manual parts washing system designed for effective cleaning of heavily contaminated industrial components. It features a closed washing chamber that allows operators to clean parts safely with the lid open or closed, depending on the cleaning requirement.
Highlights
Cleaning Efficiency
Flat Nozzles for Higest Delivery Efficiency
Build Material
Complete Stainless Steel Construcation
Advantages
Variable Preasure
Drying Mechanism
Inbuilt Air Pressure for Quick Drying

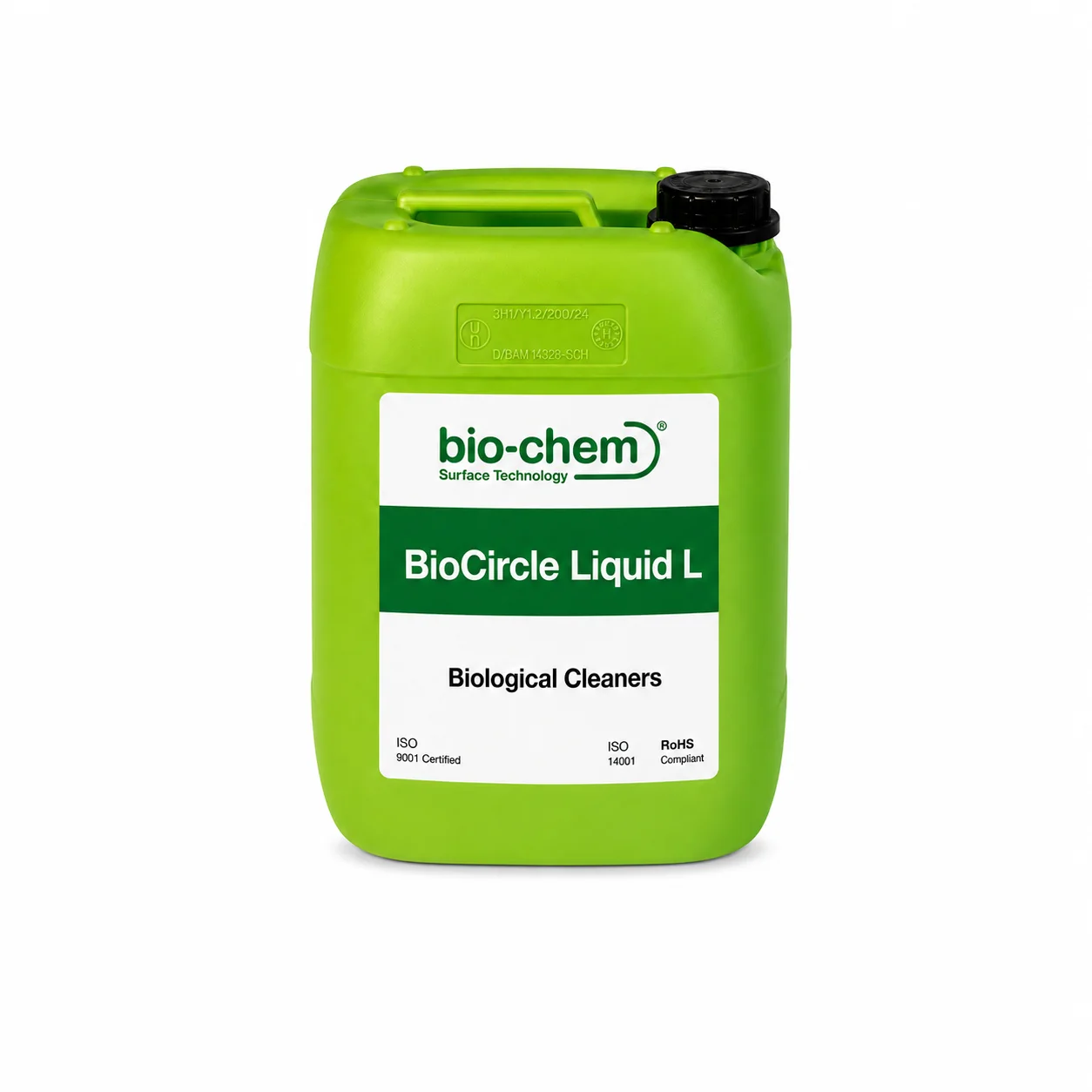

Bio-Circle L Liquid
View ProductIs This Product Right for You?
It is suitable for companies that want to: •Clean heavily soiled components more effectively •Remove oil, grease, and stubborn dirt from complex parts •Improve operator safety during manual cleaning •Reduce cleaning time compared to basic manual washing •Control cleaning temperature and pressure as needed •Dry parts quickly after washing •Maintain cleaner and safer workshop operations •Support maintenance, repair, and production cleaning needs
Application
•Cleaning heavily contaminated machine parts and workpieces •Degreasing oily and greasy industrial components •Washing complex parts with hard-to-reach areas •Cleaning motors and maintenance components •Preparing parts before inspection,repair,or reuse,Parts Washing Systems,Degreasing Solutions
Specification
| Parameter | HP VIGO |
|---|---|
| Overall width x overall depth (mm) | 1443 x 855 |
| Height with the device lid closed/open (mm) | 1574 / 1927 |
| Overall width of available surface (W × D × H) (mm) | 1157 × 768 × 520 |
| Maximum payload (crane loading is possible with the cleaning system) | 150 kg |
| Cleaning liquid tank capacity | 100 L |
| Total weight of the cleaning device (empty) | 125 kg |
| Voltage, frequency, total output | 230 V, 50 Hz, 2 kW |
| High-pressure pump | 1.85 kW, 80 bar, 12.5 l/min |
| Working pressure (adjustable) | Up to 80 bar |
| Operating temperature (factory-set) | 45 °C |
| Noise level | < 70 dB |
| Compressed air supply | 6 bar max. |
| Maximum air consumption in pane cleaning | 0.06 m³/h |
Why Choose the HP VIGO?
Targeted High-Pressure Power: Designed specifically for heavily contaminated and complex geometric parts, it strips grime from tight crevices that automated machines miss.

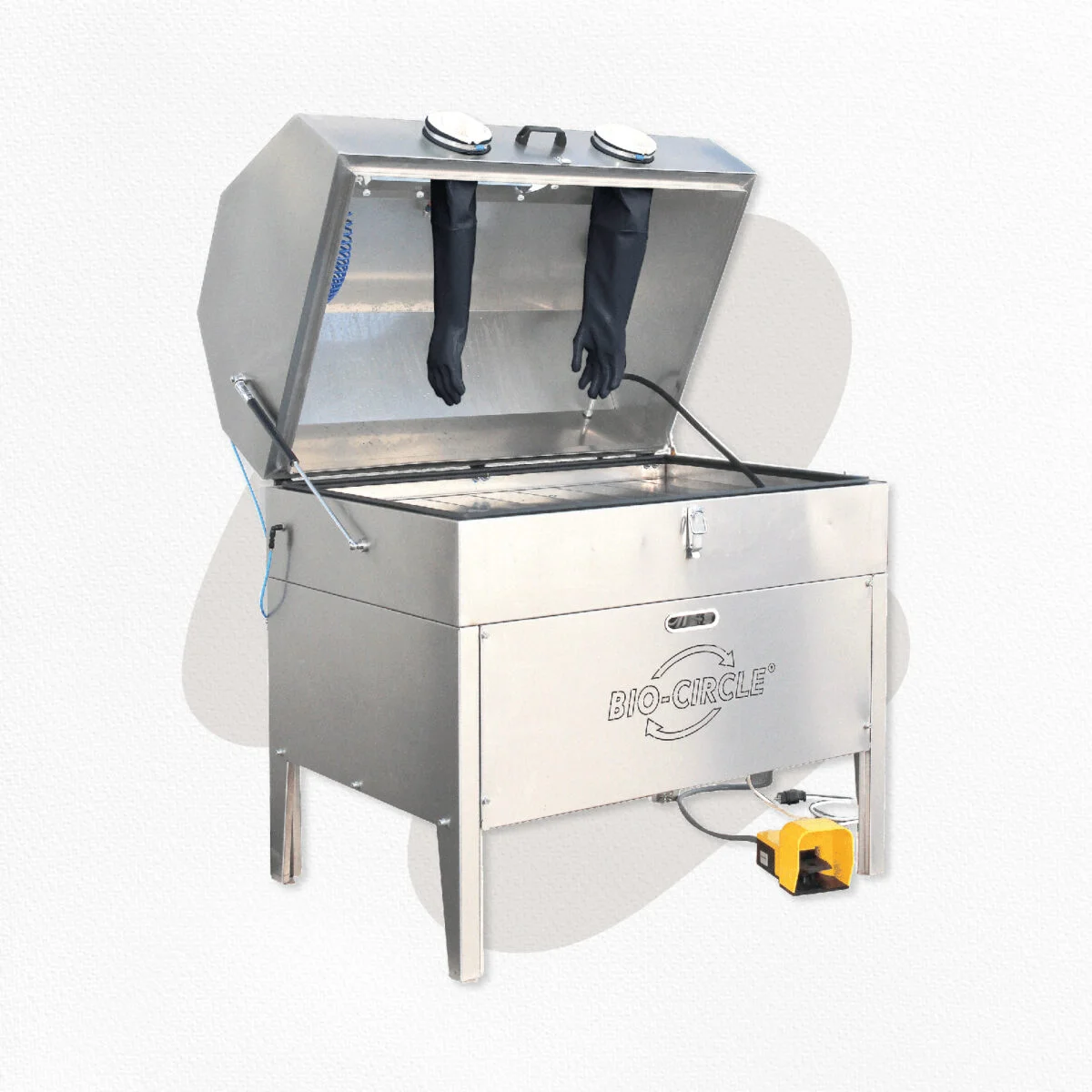

Flexible, Safe Operation: Features a heavy-duty closed washing chamber, giving your team the flexibility to safely clean parts with the lid open or closed depending on the job.
Wash, Dry, and Finish: Equipped with adjustable temperature controls, high working pressure, and a built-in compressed-air drying hookup to get parts back to work instantly.
Bio-Circle L Liquid
View ProductSimilar Products
View All Products
Similar Products
View All ProductsReady to Modernize
Your Process?
Consult with our application engineers to find the ideal cleaning or surface protection configuration for your facility.
