Descaling Systems
RWR KST

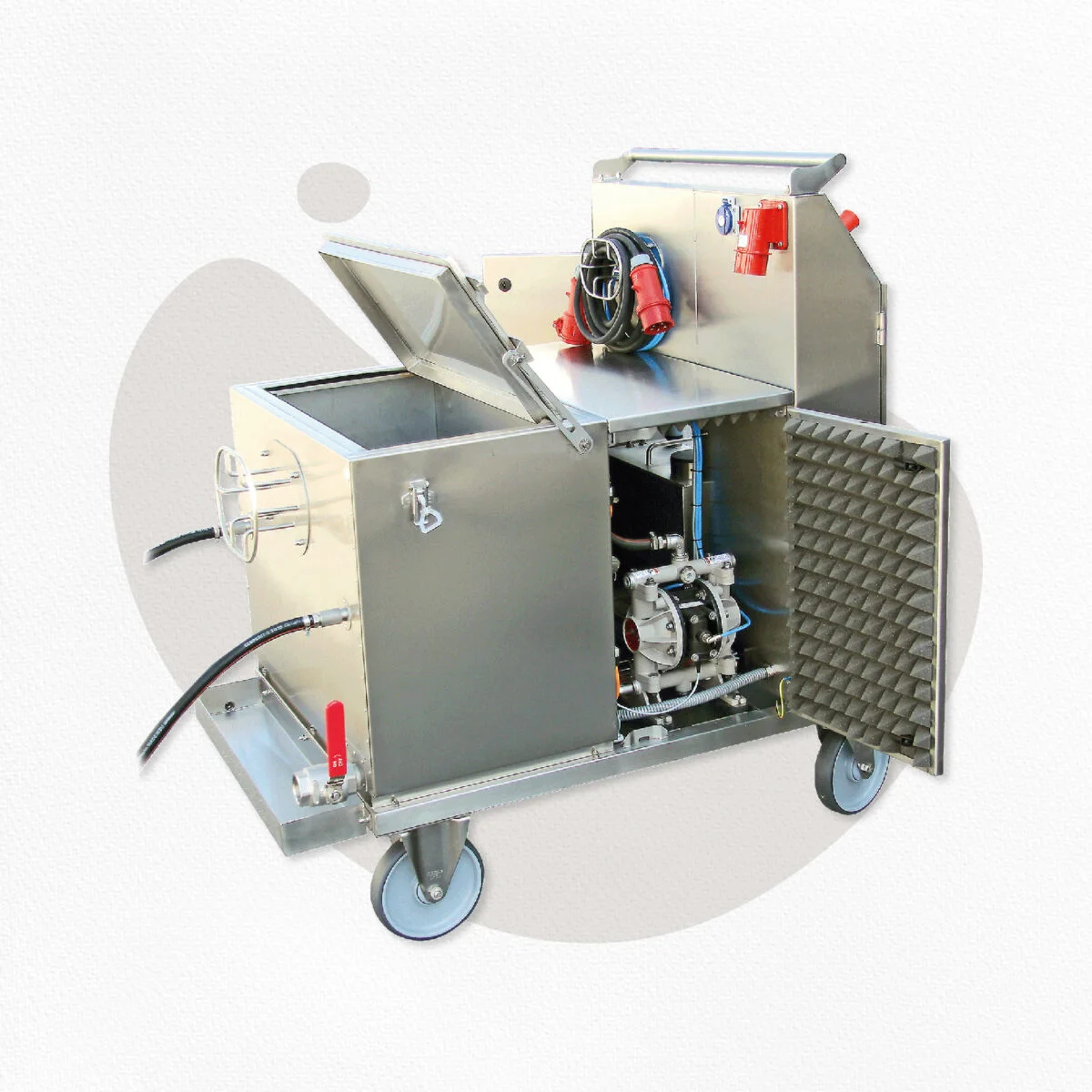

Descaling and Flushing System for Cooling Ducts

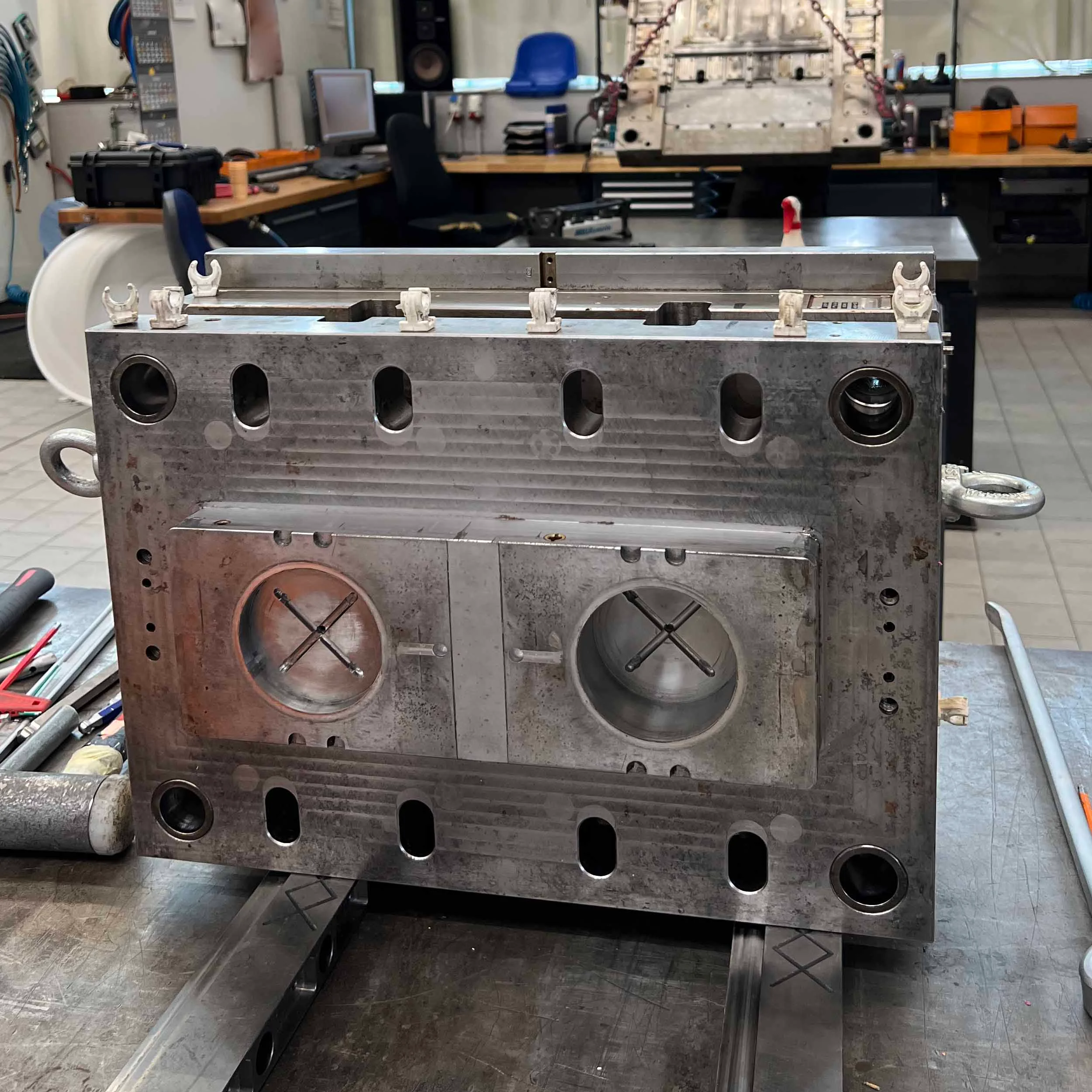

The RWR KST is a specialized descaling and flushing system designed for cleaning cooling ducts in plastic injection moulds and similar tooling systems. Over time, deposits inside cooling channels can reduce cooling efficiency, increase cycle time, and affect process stability.
Available Models
Highlights
Is This Product Right for You?
It is suitable for companies that want to: •Clean and flush cooling ducts in injection moulds •Improve cooling efficiency and process stability •Reduce downtime during mould maintenance •Avoid complex dismantling of tools •Remove deposits from internal cooling channels •Support preventive maintenance of moulds •Use a mobile and easy-to-handle cleaning system •Choose automation options based on maintenance needs
Application
•Cleaning cooling ducts in plastic injection moulds •Flushing internal cooling channels in tools •Removing deposits that reduce cooling efficiency •Supporting preventive mould maintenance •Improving flow and cooling performance in mould systems,Descaling Solutions
Specification
| Parameter | RWR-80 L KST Dual Automatic | RWR-80 L KST Fully Automatic |
|---|---|---|
| Total width x total depth x total height (mm) | 1515 x 780 x 990 | 1275 x 820 x 1285 |
| Machine footprint (W x D x H) (mm) | 1515 x 780 x 990 | 1275 x 820 x 1285 |
| Cleaning liquid tank capacity (L) | 80 | 80 |
| Useful volume (L) | 60 | 60 |
| Total weight of the cleaning system excl. tank filling and additional equipment approx. (kg) | 150 | 180 |
| Connected load (kW) | 5.1 | 4.5 |
| Power supply (V)/frequency (Hz) | 400/50 | 400/50 |
| Ball valve for draining the cleaning liquid tank (inch) | 1 1/2" | 1.5 |
| Electric heating in the washing tank | 1 x 4.5 kW | 1 x 4.5 kW |
| Treatment temperature (factory set to optimum 60°C) | 60 | 60 |
| Pump - Max. flow rate (L/min / m³/h) | 80 / 4.8 | 80 / 4.8 |
| Pump - Max. head (MLC/bar) | 31 / 3.1 | 31 / 3.1 |
| Pump - Motor (kW) | 0.55 | 0.55 |
Why Choose the RWR KST?
Direct Supply & Return Flushing: Simply connect to the mold's existing inlet and outlet. The system circulates specialized cleaning agents deep into the internal channels, removing scale without requiring complex tool dismantling.
Faster Cycle Times & Stable Production: By completely clearing out the cooling ducts, it restores optimal thermal transfer, giving you consistent part quality and faster production runs.
