RWR
Cleaning System for Pipes, Heat Exchangers and Temperature control units

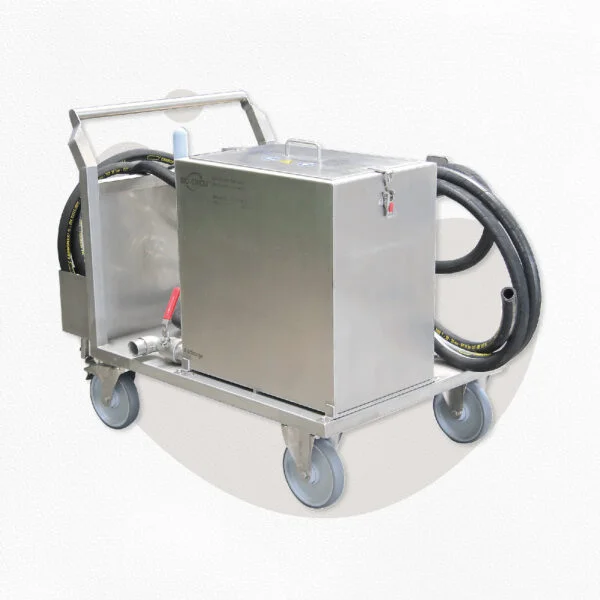

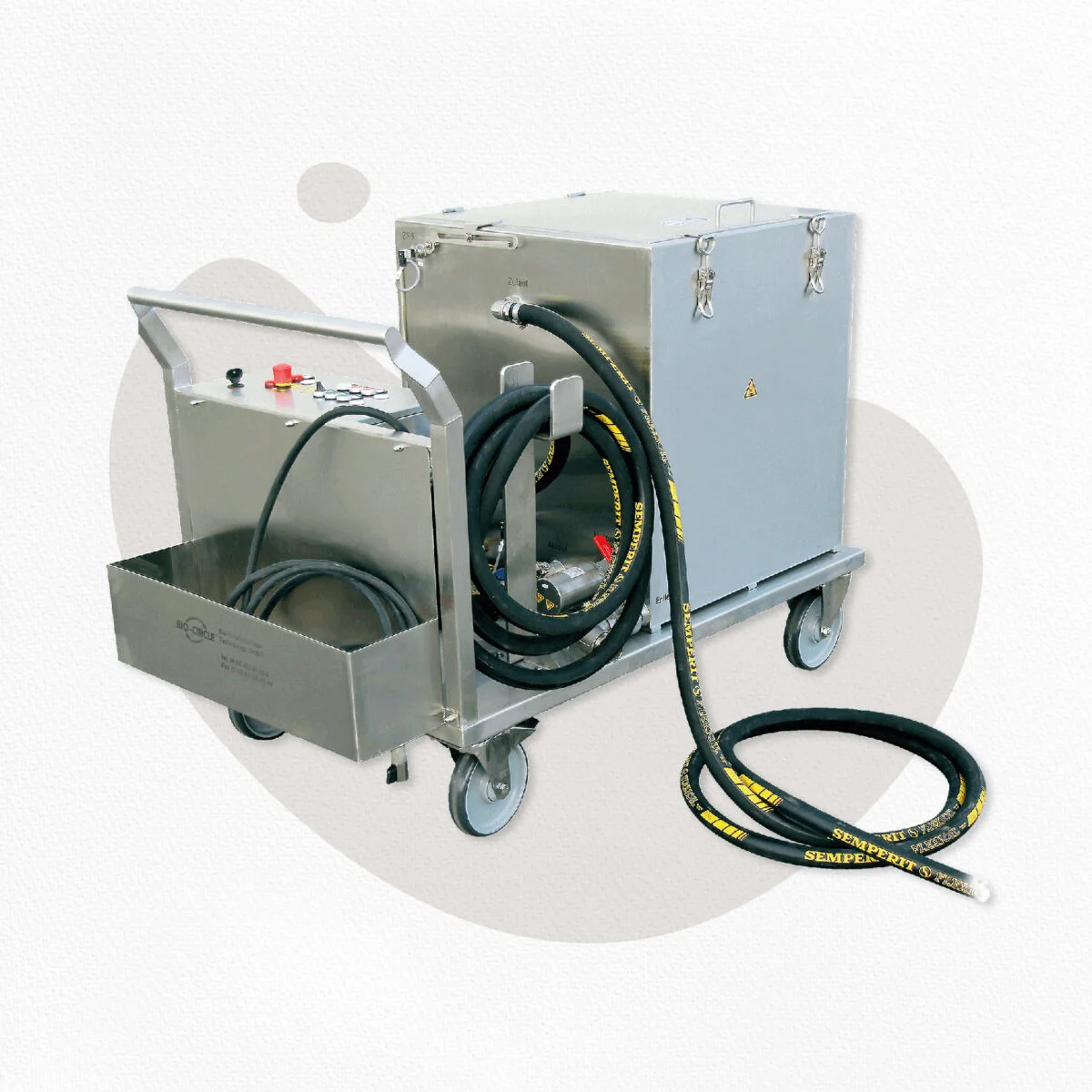

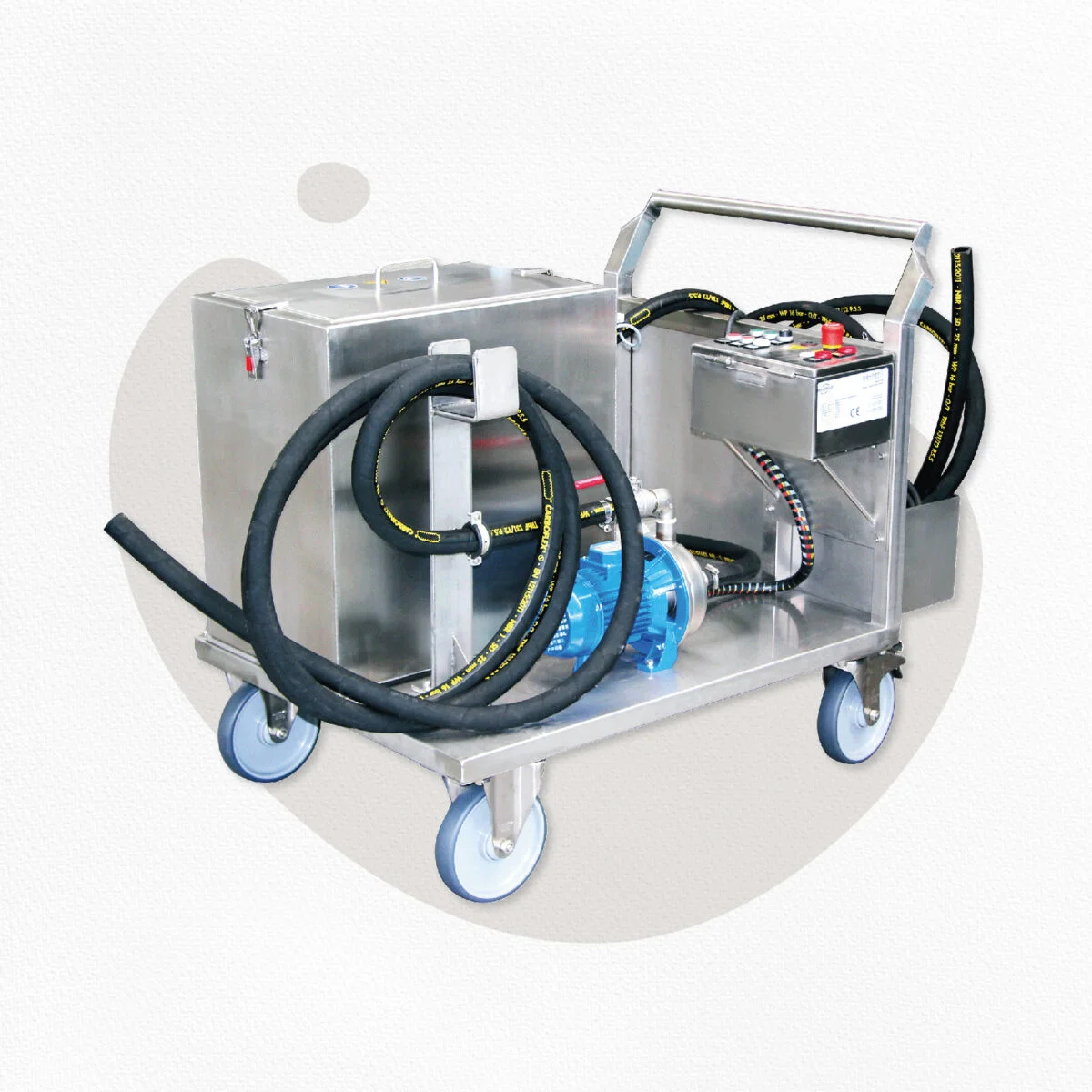

The RWR is a specialized cleaning system designed to remove deposits, scale, corrosion residues, and other contaminants from pipes, heat exchangers, cooling units, and temperature control systems.
Available Models
Highlights
Is This Product Right for You?

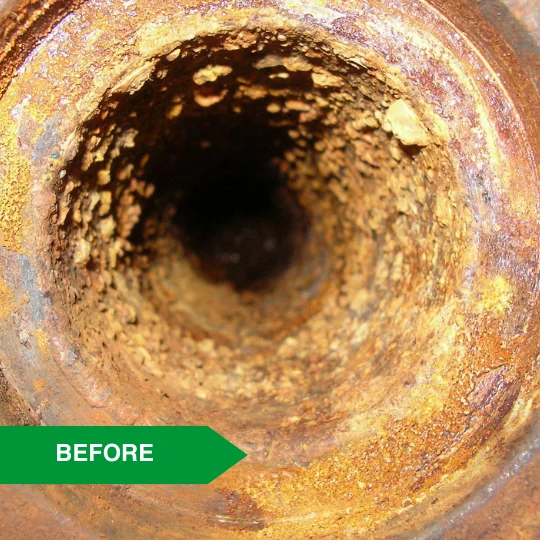

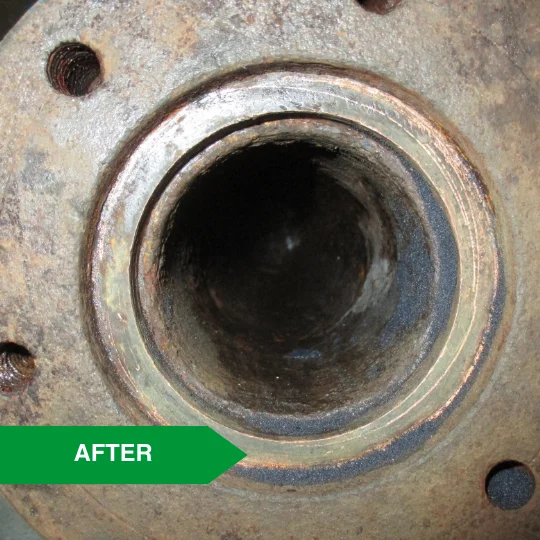

It is suitable for companies that want to: •Remove limescale, corrosion, and mineral deposits •Improve flow and heat transfer efficiency •Clean pipes, heat exchangers, and temperature control units •Reduce downtime caused by dismantling components •Support preventive maintenance activities •Maintain cooling and heating system performance •Use a mobile and easy-to-handle cleaning system •Protect pumps and equipment during cleaning operations
Application
•Cleaning pipes and internal circulation systems •Descaling heat exchangers •Cleaning cooling units and temperature control units •Removing limescale,corrosion residues,and mineral deposits •Supporting preventive maintenance without dismantling components,Descaling Solutions
Specification
| Parameter | RWR-80 L | RWR-300 L | RWR-500 L |
|---|---|---|---|
| Total width x total depth x total height (mm) | 1200 x 770 x 990 | 1500 x 800 x 1100 | 2530 x 1200 x 1385 |
| Machine footprint (W x D x H) (mm) | 1200 x 770 x 990 | 1500 x 800 x 1100 | 2530 x 1200 x 1385 |
| Cleaning liquid tank capacity (L) | 80 | 300 | 700 |
| Useful volume (L) | 60 | 200 | 500 |
| Total weight of the cleaning system excl. tank filling and additional equipment approx. (kg) | 130 | 170 | 450 |
| Connected load (kW) | 4.6 | 15 | 18.5 |
| Power Supply (V)/frequency (Hz) | 400/50 | 400/50 | 400/50 |
| Ball valve for draining the cleaning liquid tank (inch) | 1 1/2" | 1 1/2" | 1 1/2" |
| Electric heating in the washing tank | 1 x 4.5 kW | 2 x 6 kW | 2 x 7.5 kW |
| Treatment temperature (factory set to optimum 60°C) | 60 | 60 | 60 |
| Pump - Max. flow rate (L/min / m²/h) | 4.8 | 12.6 | 12.6 |
| Pump - Max. flow rate (L/min / m³/h) | 16.5 | 49 | 49 |
| Pump Motor (kW) | 0.55 | 3 | 3 |
Why Choose the RWR?
Clean from the Inside Out: Connects directly to your existing pipe networks, heat exchangers, and cooling loops to dissolve stubborn blockages internally—no dismantling required.
Rugged, Chemical-Resistant Mobility: Built entirely from high-grade stainless steel with specialized acid- and alkali-resistant hoses, this highly portable unit easily wheels right up to any troubled machine on your floor.
Smart Process Controls: Equipped with integrated fluid heating, smart level monitoring, and built-in pump protection to ensure a safe, perfectly controlled flush every single time.
